Measure Distance-Extend/Angle

Measure Distance-Extend:

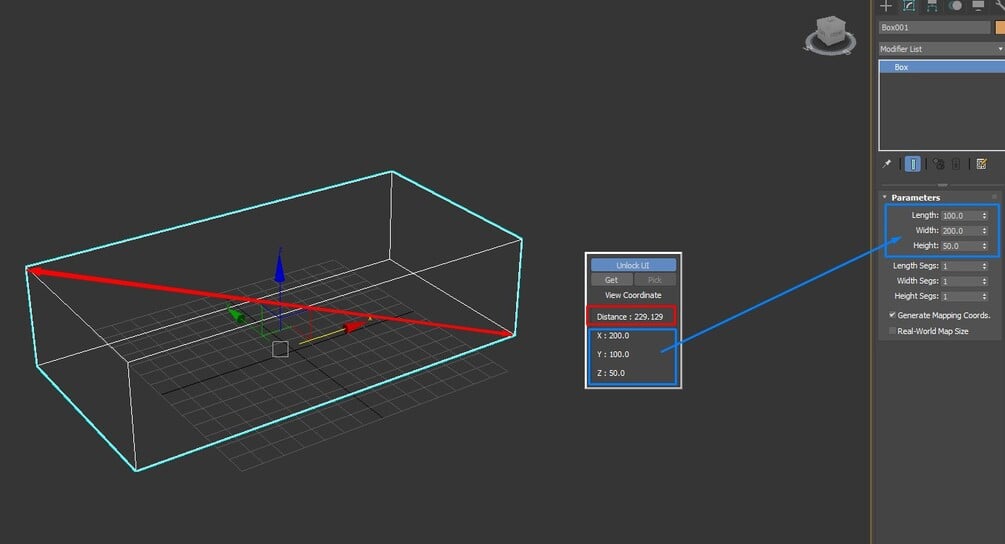

3ds Max Script to Measure the Distance between 2 points (Similar to 3ds Max Measure Distance Tool), But with Projection Distance on X, Y and Z Axis

- To close the Script Window press Escape.

How it Works:

this is MacroScript so you need to make shortcut or quad menu or toolbar button for it,

it's better to make shortcut, something like (Alt+M)

Run the Script and Pick 2 points.

- The CheckButton (Lock/Unlock UI) to switch between Lock Max UI or not.

- The 2 Buttons 'Get' and 'Pick' to Measure Distance According to 'Another Object Transform'

- RightClick on 'Get' or 'Pick' Buttons to Measure Distance on View Coordinate System.

UPDATE:
- Add installer and Macros.
- Work with Max 2022.

UPDATE-1:

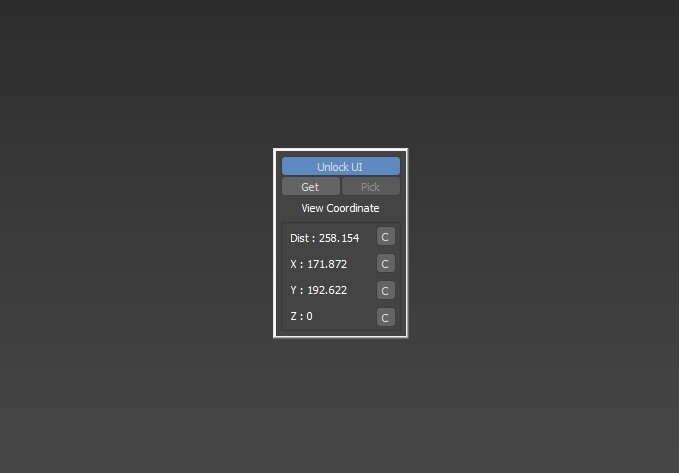

• Add Buttons to Copy Specific Distance.

Measure Angle:

3ds Max Script to Measure the Angle between 3 points and the Projected Angle on each Axis X, Y, Z.

-The First Picked Point should be the Center Point of the Angle

- To close the Script Window press Escape.

How to Install:

Drop the .MZP Files to any 3dsmax viewport or from Scripting menu / run Script.

you will find the 2 Scripts in Category _My Scripts_
